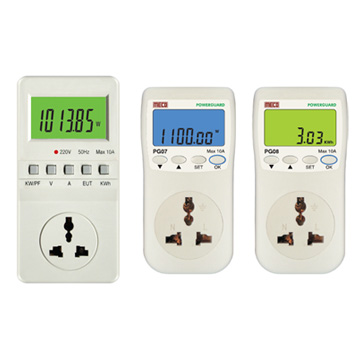

Power Guard
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
Models :
PG09H, PG09
|
|
Features :
|
-
Displays TRMS V, TRMS A, kW, PF, kWh etc.
-
Display Energy Usage Time (EUT)
-
Red LED flashes when the Energy is being used
-
Large LCD Display with Backlight
|
|
|
|
Gen. Specifications
|
- Accuracy : Class 1.0
- Power Consumption : less than 0.4W (without backlight), less than 0.8W (with backlight)
- Input : 230V, 50/60Hz, 10A (max.)(Model: PG09) 230V, 50/60Hz, 15A (max.)for 10A to 15A, not more than 10 minutes continuous (Model: PG09H)
- Meters Constant : 6400 Impulse / KWh
- Working Temperature : 0°C to +45°C
- Dimensions : 158 x 80 x 50mm (approx.)
- Weight : 0.3Kgs (approx.)
|
|
Models
|
PG07, PG08
|
|
Features
|
- Displays W, PF (PG08 only), mA, V, Hz, kWh and CO2.
- Display Energy Usage Time (min)
- Red LED flashes when the Energy is being used
- Large LCD Display with Backlight
|
|
Gen. Specifications
|
- Accuracy : Class 1.0
- Power Consumption : less than 1W
- Input : 220V, 50Hz, 2.5 - 10A (max.)
- Working Temperature : 0°C to +45°C
- Dimensions : 120 x 65 x 55mm (approx.)
- Weight : 130gms (approx.)
|
|
|
|
| |
|
|
|
|
