Solar System Analyzer (Photovoltaic I-V Curve Tester) with DC Current Clamp, AC Power Clamp, Thermo & Irradiance Meter (Model : 9018BT)

Models : 9018BT

Features :

I-V Curve Test for Solar System
Max. Solar System Power (Pmax) search by Auto-Scan : 1000V, 12A (12000W Capability)
The Analyzer and the Remote Solar Detector is connected by Bluetooth Wireless Communication (Bluetooth 2.1 + EDR Class 1)
The Remote Solar Detector is Moisture-Proof.
Intelligent Test Logic with no personnel attendance required in the field.
Max. Voltage (Vpm) at Pmax, Max. Current (Ipm) at Pmax
Voltage at Open Circuit (Voc), Current at Short Circuit (Isc)
Efficiency (%) Calculation of Solar System
Temperature Measurement of Solar Panels
Irradiance Measurement of Sun Light
Series Resistance (Rs) Calculation of Solar Panels
I-V Curve with Cursor to Display each Data Point
With Data Logging / Open Function, the I-V Curves of Solar System can be analysed / recorded for a period of time (e.g. 60 min.)
Conversion of I-V Curve under OPC to data under Standard Test Condition (STC) based upon IEC Standard
Built-in Calendar Clock
Users can set up the Parameters of Solar Panels
Users can set up the Series number of Solar Panels. Parameters of many Solar Panels can be Measured in One Measurement.
The Irradiances and Temperatures of Solar Panels can be continuously Measured, Monitored and Recorded.
Rechargeable Lithium Battery, Low Battery Warning, AC Power Adaptor
OpticalUSBCable forPCCommunication
Solar Connector (optional)
Provide Operating Condition (OPC) and Standard Test Condition (STC) test reports for Verification of SolarPanelPerformance (OK, or NO OK)
With Power Clamps (SOLAR 15 DC Current Probe and SOLAR 21 AC Power Clamp), continuously measure / monitor / record the DC Power output of Solar System and the AC Power Output of Inverter (1 phase or balanced 3 phases); calculate the Efficiency of DC to ACPower Conversion and the Efficiency of the max. output power.

Specifications

Battery Type : Rechargeable Lithium Battery (3400mAh)
Battery Life : 400 times of linear scan (1000V ~ 1V, 0.1A ~ 12A), 8 hours for standby mode.
Memory Size : 512K Bytes (3980 Mod files or 320 REC files or 3980 PWR files or 3980 IRR files)
AC Adaptor : AC 100 ~ 240V input, DC 15V / 1 ~ 3A output
Standards : EN 61323-1:2006 Class B, EN 61010-1:2010, IEC 6100-4-2:2008, CAT II 1000V, CAT III 300V & Pollution Degree 2
Operation Environment : 5°C ~ 50°C , <85% RH
Temperature Coefficient : 0.1% of full scale / °C (<18°C or >28°C)
Storage Environment : -20°C ~ 60°C , <75% RH
Dimension : 260 x 158 x 64mm (approx.)
Weight : 1580gms Batteries included (approx.)

DC Voltage Measurement

1 - 1000V

DC Current Measurement

0.1 - 12A

Accessories

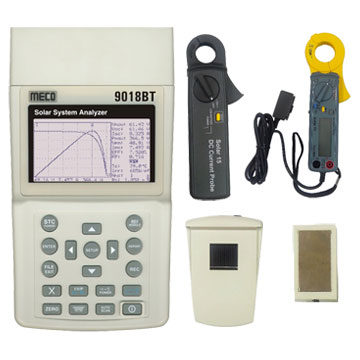

Solar Irradiance Meter (Remote Solar Detector) x 1 Pc
Thermometer x 1 Pc
USB Power Cord x 1 Pc
Instruction Manual x 1 Pc
AC Adaptor x 1 Pc
Optical USB Cable x 1 Pc Rechargeable Lithium Battery (3400mAh) x 1 Pc
Software CD x 1 Pc
Software Manual x 1 Pc
Carrying Bag x 1 Pc
Thermal Conductive Gel x 1 Pc
Testing Clips (Black & Red) x 1 Pair
4 Wire to 2 Wire Connecting Cable x 1 Pc
4 Wire Testing (Extension) Cable x 1 Pc
Solar 15 : DC Current Probe x 1 Pc
Solar 21 : AC Power Clamp x 1 Pc
