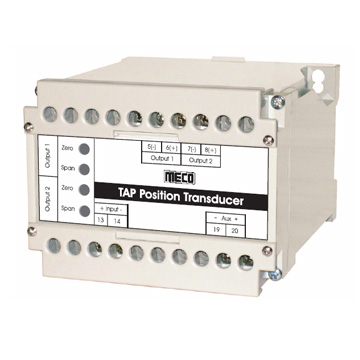

TAP Position Transducer
|
|
|
|
|
|
|
 |
|
|
|
|
|
Models :
TPT
|
|
Features :
|
-
MECO Tap position Transducer takes various Resistance inputs and provides a Stable, Ripple-Free and Optically Isolated DC load independent output in the form of current or voltage. The output can be connected to Controllers, Data-Loggers, PLC's Analog/Digital Indicators, Recorders for display, analysis or control. They are ideal for SCADA, Energy Management, Telemetering for Remote, Local as well as Central Monitoring System.
|
|
|
|
Type
|
DIN Mounting, Back Panel Mounting
|
|
DC Output
|
Current: 0-1, 0-5, 0-10, 2-10, 0-20, 4-20mA
Voltage: 0-1, 0-5, 1-5, 0-10, 2-10V
|
|
Accuracy
|
Standard : ± 0.5% of Span
Optional : On Request
|
|
Dielectric
|
Strength 2.5kV at 50Hz for 1 min. (Standard)
4kV(Optional), across
Casing - Input / Output / Auxiliary
Input - Output
Input - Auxiliary
Output - Auxiliary
Output - Output (Optional, subject to technical feasibility)
|
|
Resistance Input
|
Resistance input from potentiometric transformer
tap position upto 99 transformer taps (100 KOhms max.)
|
|
Auxillary
|
SMPS - HV : 85-265V AC / DC
SMPS - LV : 19-90V AC / DC
110 / 230V AC ± 20%
|
|
Isolation
|
Complete (Input / Output / Auxiliary / Case)
|
|
Standards
|
IEC 688 / EN 60688, EN 61010-1, EN 61326-1, IS12784 (Part-1) 1989
|
|
|
|
| |
|
|
|
|
