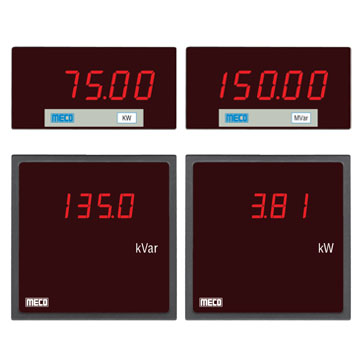

Digital Wattmeter / Varmeter (with Built-In Transducer)
|
|
|
|
|
|
|
 |
|
|
|
|
|
Models :
SMPW35S, SMPV35S, SMPW9635S, SMPV9635S, SMPW35, SMPV35, SMPW96 x 28845, SMPV96 x 28845, SMPW72 x 14445, SMPV72 x 14445, SMPW72 x 14445S, SMPV72 x 14445S, SMPW14445, SMPV14445, SMPW14445S, SMPV14445S
|
|
|
|
Bezel Size
|
48x96mm, 96x96mm,72x144mm, 144x144mm, 96x288mm
|
|
Digits / Counts (max.)
|
3.5/1999, 4.5/19999
|
|
Digit Height
|
0.56” / 14.2mm, 0.8” / 20MM, 1” / 25.4mm, 2.3"/58mm
|
|
Ranges (AC)
|
V : 63.5, 110, 230, 440V AC and Through PT for Higher Voltages
AC A :1, 2, 5A AC and Through CT/ 1A or 5A for Higher Currents
PF (Nominal) : 0.2 Lag / 1 / 0.2 Lead
Hz (Nominal) : 50Hz (Standard)/ 60Hz (Optinal)
|
|
Accuracy Class
|
0.5% of Full Scale
|
|
Auxiliary Supply
|
Standard : 230V AC
Optional : 63.5 / 110 / 440 V AC; 12 / 24 / 48 / 110 / 220V DC
|
|
|
|
| |
|
