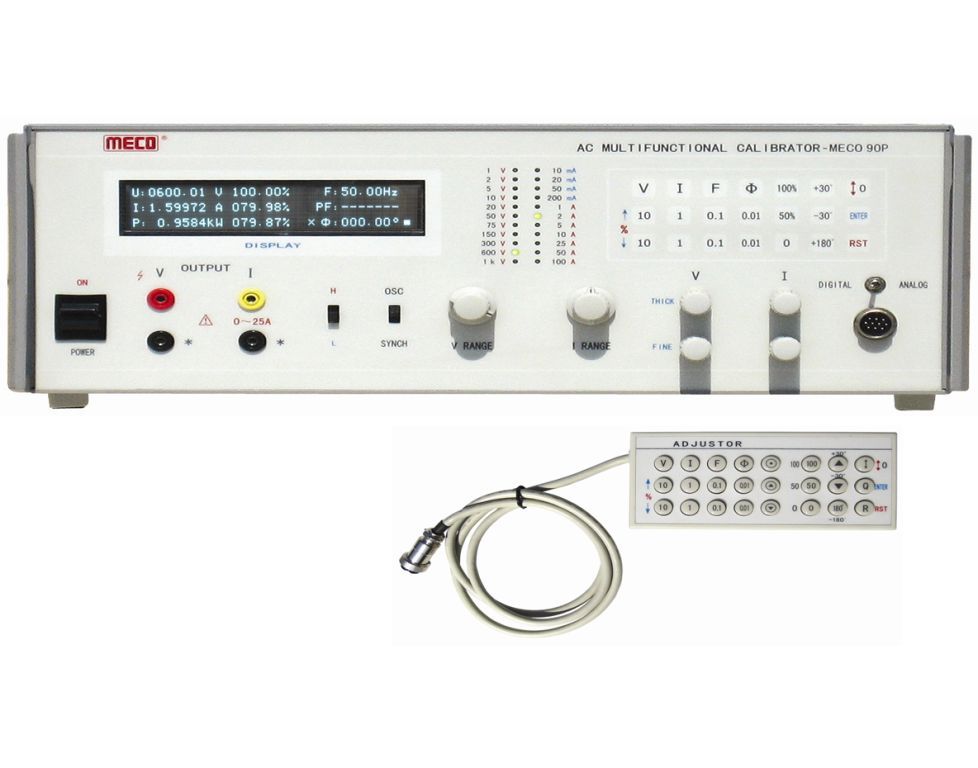

AC Multifunctional Calibrator (Model : 90P)


AC Multifunctional Calibrator (Model : 90P)

Download Manual Online Download Catalog Product Certifications Enquiry
Models : 90P
Features :
  • Power Range : 0 to 100kW
  • Power Basic Error : ± (0.07 %RD + 0.03 %FS)
  • Stability V, I : < 0.01 %FS / 2 min, P : < 0.02 %FS / 2 min
  • Distortion : < 0.5 %
  • Power Factor Range : -1 to +1
  • Power Factor Basic Error : ± 0.001 (PF 0 to ±0.8); ±0.0005 (PF -0.8 to -1, +0.8 to +1)
  • Power Supply : 230 VAC, 50 (60) Hz
  • Power Consumption : < 300 VA
  • Display : 51/2 Digit VFD Digital Display
  • Operating Temperature : 5ºC to 35ºC
  • Relative Humidity : ≤ 80 %
  • Dimensions : 192mm (H) x 480mm (W) x 540mm (D)
  • Total Weight : 23 kgs (approx.)


Applications
  • Calibration of AC Volt, Amp, Watt, Var, Frequency, Powerfactor, Phase angle and Energy Meters
  • Calibration of Voltage, Current, Active & Reactive Power, Frequency, Powerfactor, Phase angle and Energy Transducers.
Accessories
  • Output Leads x 1 Pair
  • Output Leads (50A/100A) x 1 Pair
  • Operation Manual x 1 Pc
  • Key Adjuster x 1 Pc
  • Power Cord x 1 Pc
  • Fuse (4A) x 2 Pcs
  • Data Cable for PC Connectivity x 1 Pc
Download catalog for complete technical specifications
